Permeable Paver Driveway Section

Materials

Elements

About this detail

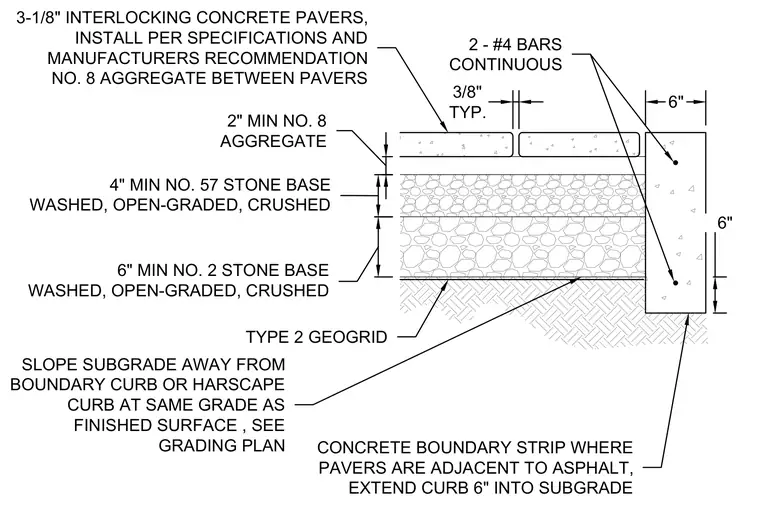

This permeable paver assembly consists of 3-1/8 inch interlocking concrete pavers set over a 2-inch minimum layer of number 8 aggregate, with number 8 aggregate swept between the pavers at a typical 3/8-inch joint. The bedding and choke layers are supported by a 4-inch minimum crushed washed number 57 stone base and a 6-inch minimum crushed washed number 2 stone base over a Type 2 geogrid. A concrete boundary strip reinforced with two continuous number 4 reinforcing bars is provided where pavers are adjacent to asphalt, extending 6 inches into the subgrade. The subgrade is sloped away from the boundary curb, and the curb matches the grade of the finished surface.
