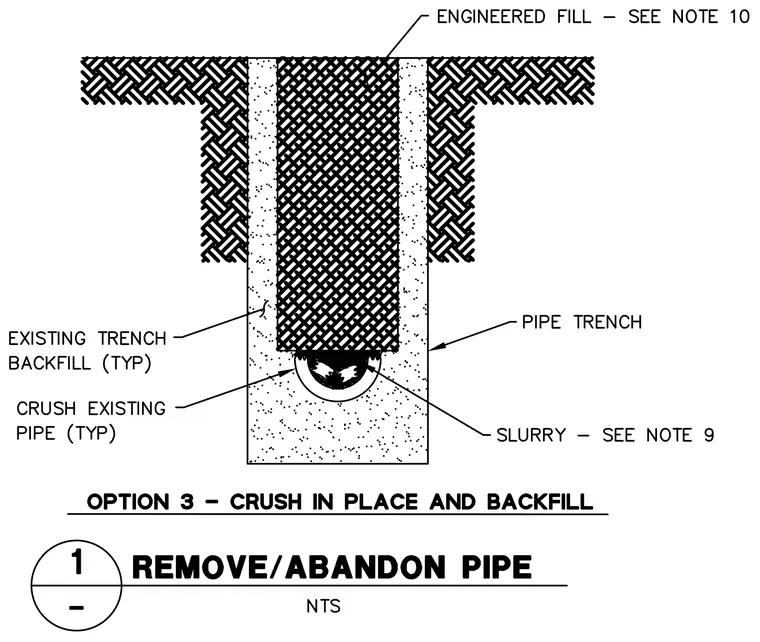

An existing pipe is crushed in place within a pipe trench and surrounded by slurry as specified in note nine. The upper portion of the trench receives typical existing trench backfill, topped with engineered fill per note ten.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
