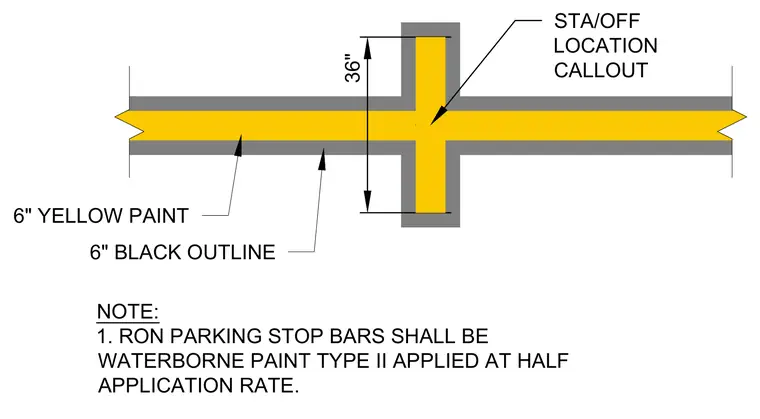

This parking stop bar detail features a six-inch yellow paint stripe bordered by a six-inch black outline. The marking has a thirty-six-inch station offset location callout. Waterborne paint type II applied at half application rate is specified for the installation.
6" YELLOW PAINT 6" BLACK OUTLINE NOTE: 1. RON PARKING STOP BARS SHALL BE WATERBORNE PAINT TYPE II APPLIED AT HALF APPLICATION RATE. 36" STA/OFF LOCATION CALLOUT
