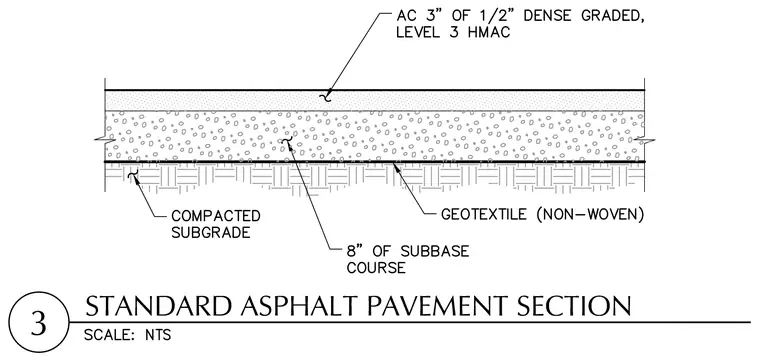

A three-inch layer of one-half-inch dense graded level three hot mix asphalt concrete bears over an eight-inch subbase course. A non-woven geotextile fabric separates the subbase course from the underlying compacted subgrade.
