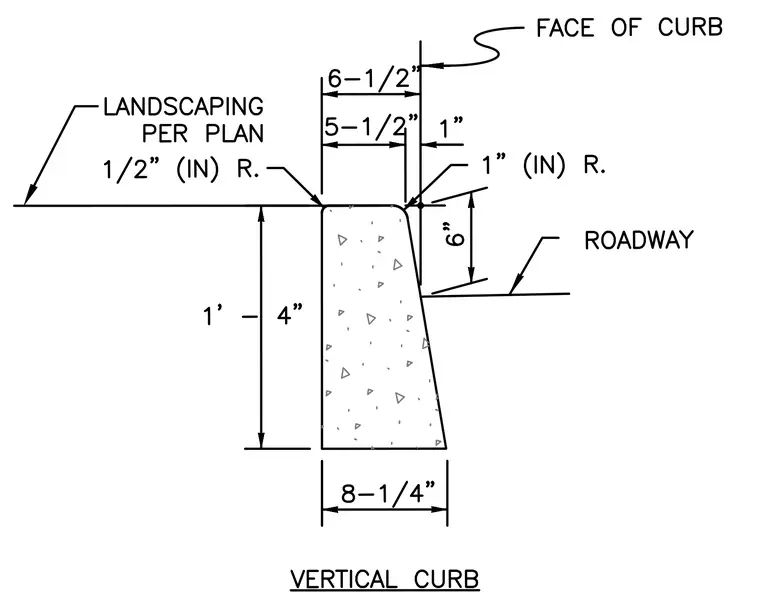

This vertical concrete curb section stands one foot four inches high with an eight-and-a-quarter-inch base. The top surface measures six and a half inches wide, with a one-inch inner radius meeting the vertical face and a half-inch inner radius at the landscaping edge. The roadway surface meets the six-inch vertical face below a one-inch setback at the top of the curb. Landscaping is positioned per plan adjacent to the back of the curb.
8-1/4" 1' - 4" 1" 6-1/2" 6" 5-1/2" FACE OF CURB ROADWAY 1/2" (IN) R. 1" (IN) R. VERTICAL CURB LANDSCAPING PER PLAN
