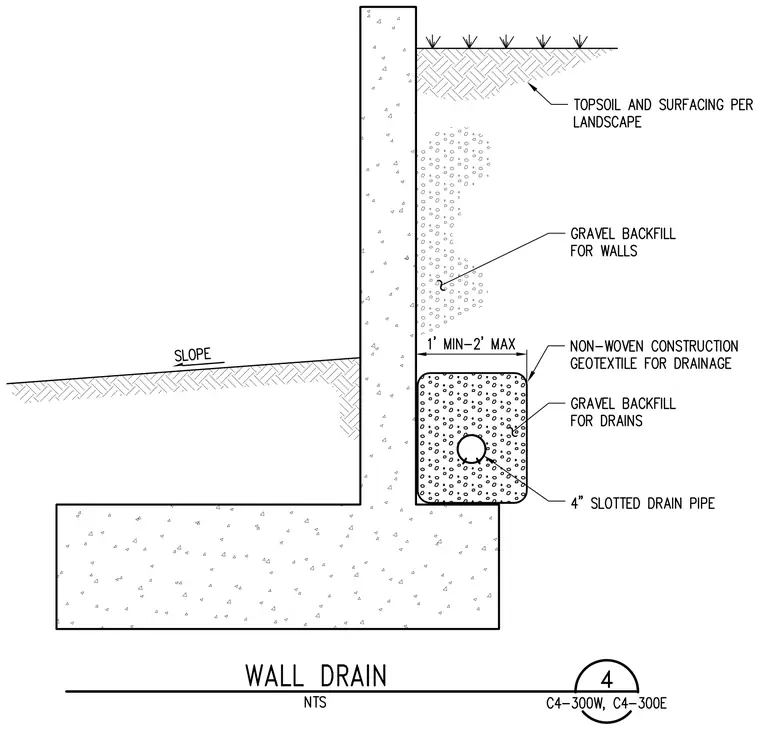

A reinforced concrete retaining wall bears on a continuous concrete footing with a sloped grade on one side and topsoil and surfacing per landscape on the other. A 4-inch slotted drain pipe rests on the footing adjacent to the wall stem, wrapped in non-woven construction geotextile for drainage. The drain pipe is enclosed within a 1-foot minimum to 2-foot maximum width zone of gravel backfill for drains. Additional gravel backfill for walls is placed above the drainage layer, extending up toward the topsoil surface.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
