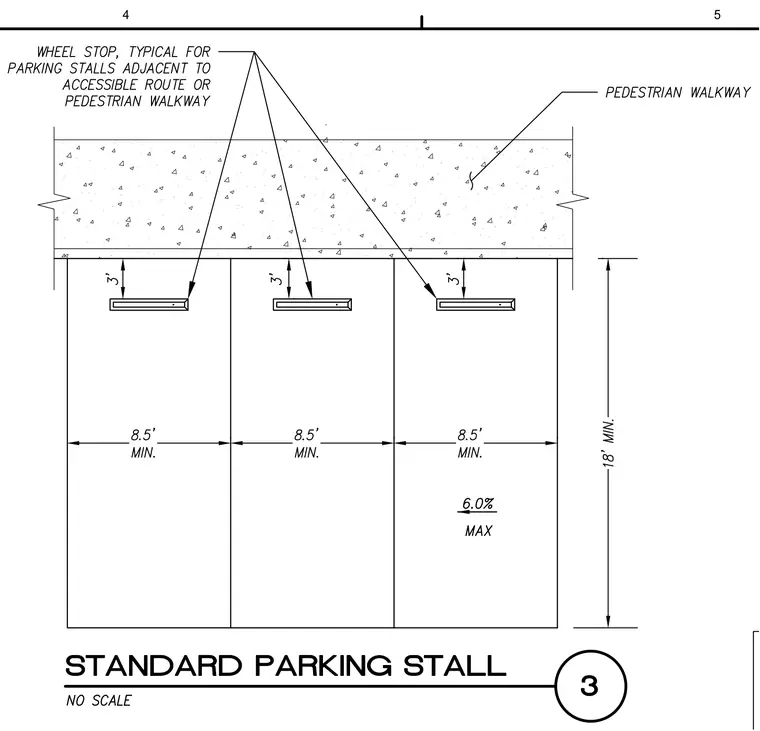

Standard parking stall dimensions feature a minimum width of 8.5 feet and a maximum slope of 6.0 percent. Wheel stops are positioned three feet from the head of the stall, typically required for parking stalls adjacent to an accessible route or pedestrian walkway. The overall stall layout maintains an 18-foot minimum length.
