Structural · C-GHAEJ

Buckling-Restrained Braced Frame Column Base Plate Plan

Materials

Concrete Steel Masonry / CMU

Elements

Columns Connections / Plates

Connections

Base Plate / Anchorage Welded Connection

About this detail

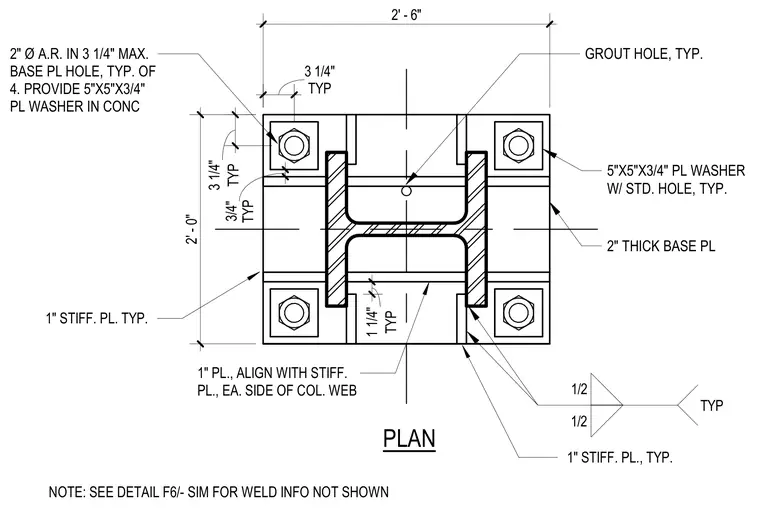

This structural plan details a heavy steel column base plate measuring two feet six inches by two feet, featuring a two-inch-thick base plate welded to the column sections with half-inch fillet welds. Four two-inch diameter anchor rods are housed in three-and-a-quarter-inch maximum base plate holes, each paired with a five-inch by five-inch by three-quarter-inch plate washer embedded in the concrete. One-inch stiffener plates align with the column web on each side, supplemented by additional typical stiffener plates around the perimeter. A standard grout hole is centrally located within the base plate assembly. Additional welding specifications are referenced to a companion detail.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
