The partial height partition consists of one layer of five-eighths inch Type X gypsum board on both sides of steel studs. Wall thicknesses and stud sizes vary according to wall tags PG3 and PG6, with stud sizes of three and five-eighths inches and six inches respectively. Base and floor finishes are installed per the finish plans at the lower structure transition.

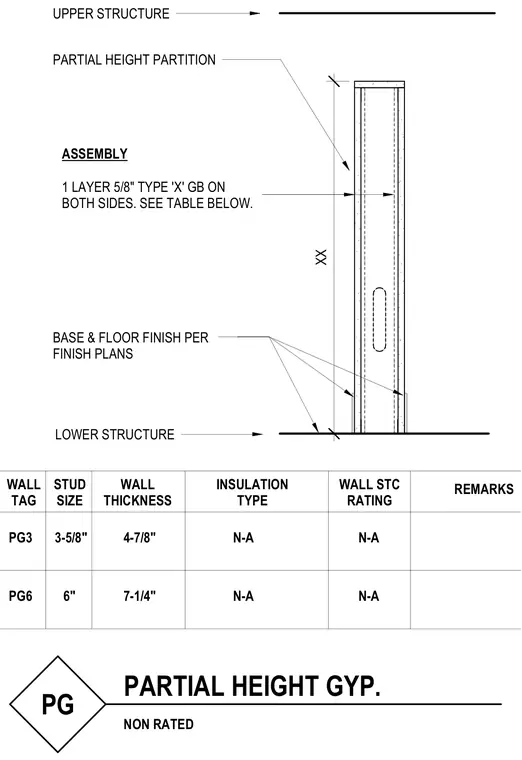

PARTIAL HEIGHT GYP. PG BASE & FLOOR FINISH PER FINISH PLANS LOWER STRUCTURE PARTIAL HEIGHT PARTITION XX WALL THICKNESS STUD SIZE INSULATION TYPE WALL STC RATING REMARKS 4-7/8" 3-5/8" N-A N-A 7-1/4" 6" N-A N-A ASSEMBLY 1 LAYER 5/8" TYPE 'X' GB ON BOTH SIDES. SEE TABLE BELOW. NON RATED WALL TAG PG3 PG6 UPPER STRUCTURE
