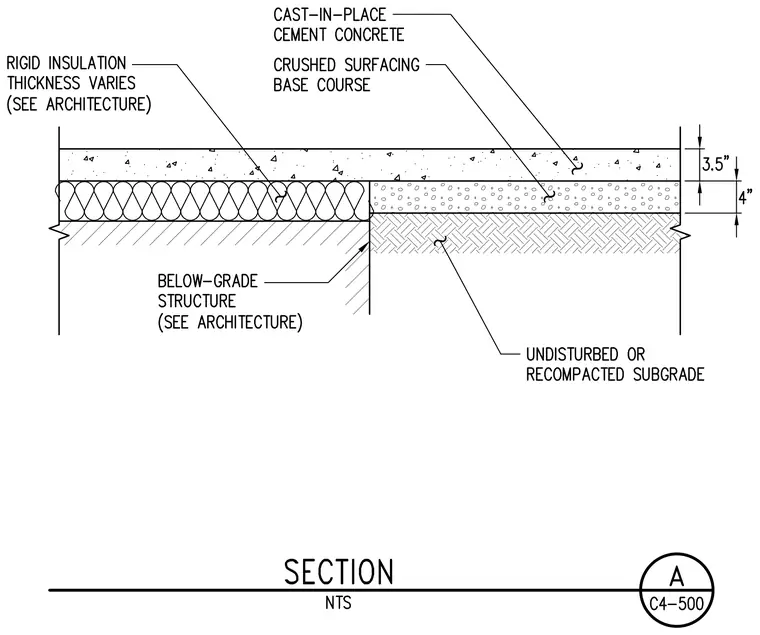

A 3.5-inch cast-in-place cement concrete slab is placed over a 4-inch crushed surfacing base course, which rests on undisturbed or recompacted subgrade. Adjacent to this section, rigid insulation with thickness varying per architecture bears directly on the below-grade structure.
