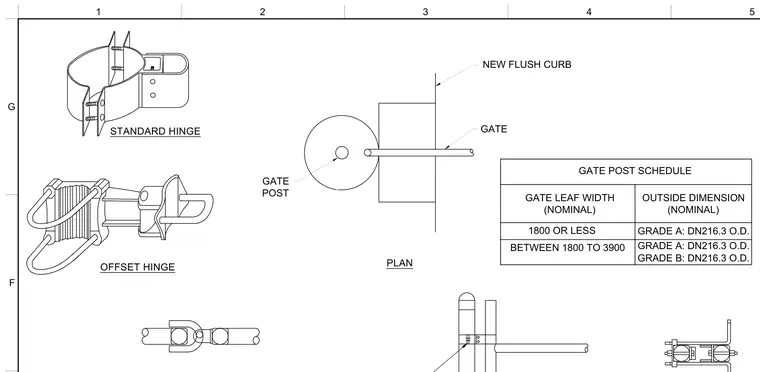

Gate hardware details include a standard hinge, offset hinge, gate plan layout at a new flush curb, and a gate post schedule detailing outside dimensions for various gate leaf widths.
OFFSET HINGE STANDARD HINGE GATE POST SCHEDULE 1800 OR LESS BETWEEN 1800 TO 3900 GATE LEAF WIDTH (NOMINAL) OUTSIDE DIMENSION (NOMINAL) NEW FLUSH CURB GATE PLAN GATE POST GRADE A: DN216.3 O.D. GRADE A: DN216.3 O.D. GRADE B: DN216.3 O.D. F G 1 2 3 4 5
