Concrete Pavement Reinforcement at Structures

Materials

Elements

About this detail

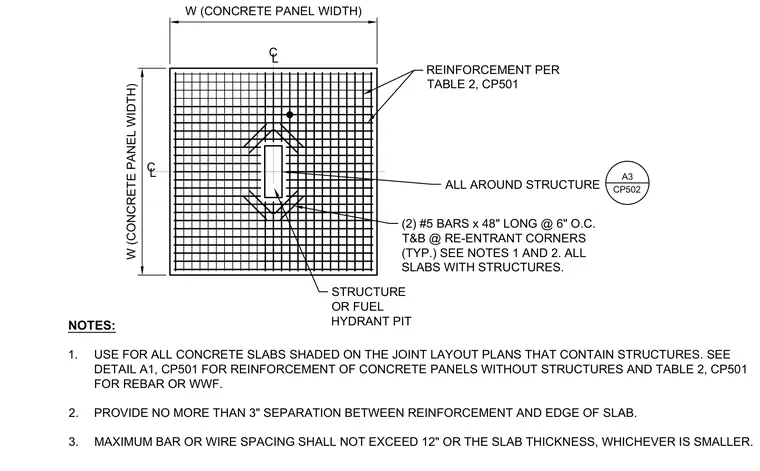

This concrete pavement detail shows reinforcing layout requirements around structures or fuel hydrant pits within concrete slabs. The reinforcement grid consists of bars or welded wire fabric specified per table two, sheet CP501, positioned all around the central structure. Two number five bars measuring forty-eight inches long are placed at six inches on center top and bottom at re-entrant corners. A maximum reinforcement separation of three inches from the slab edge is maintained, and bar or wire spacing is limited to twelve inches or the slab thickness, whichever is smaller.
