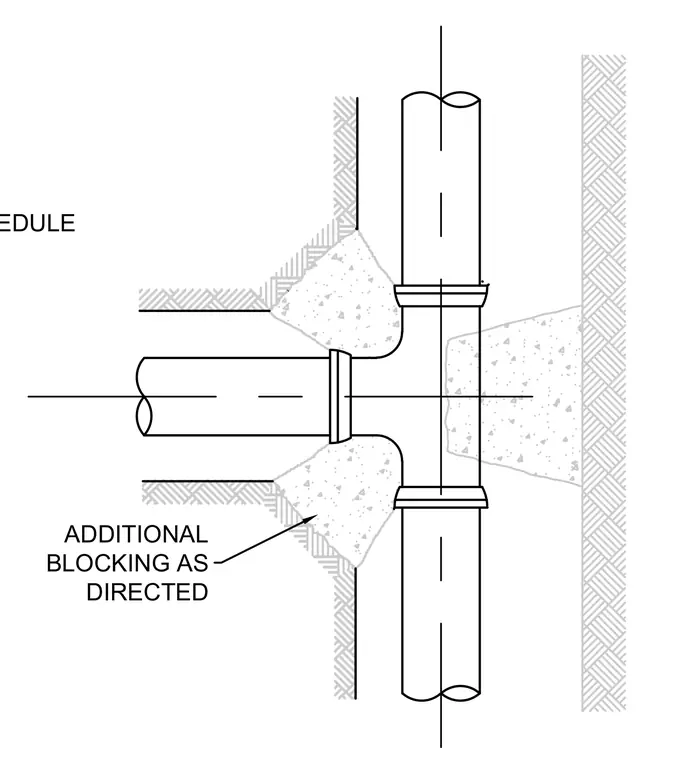

A pipe tee fitting is anchored with concrete thrust blocking positioned against undisturbed soil as directed by the schedule. Additional blocking is placed at the branch and run intersections to resist hydraulic forces.
