Civil · C-G2WZ7

Reinforced Concrete Exterior Stair and Cheekwall Section

Materials

Reinforced Concrete

Elements

Stairs Railings / Guards Foundations / Footings Anchors / Embeds Reinforcing

Connections

Welded Connection Rebar Splice / Development

About this detail

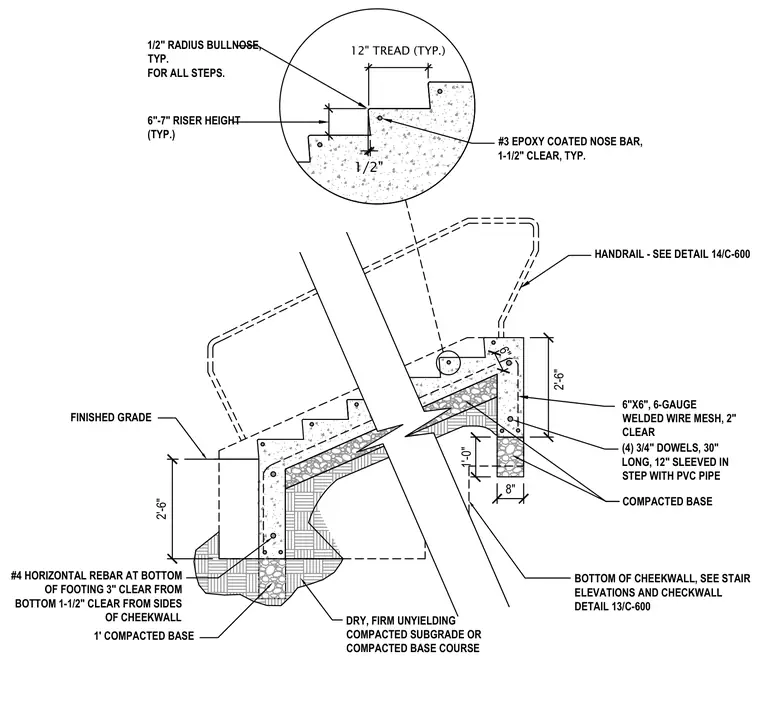

This concrete stair section details exterior steps bearing on a dry, firm, unyielding compacted subgrade or compacted base course with a one-foot compacted base. Each step features a six- to seven-inch typical riser height, a twelve-inch typical tread, a one-half-inch radius bullnose, and a number three epoxy-coated nose bar placed with one-and-one-half-inch clear typical. The cheekwall incorporates six-by-six six-gauge welded wire mesh with two-inch clear cover and four three-quarter-inch dowels thirty inches long sleeved twelve inches in the step with PVC pipe. The footing includes number four horizontal rebar at the bottom with three-inch clear from the bottom and one-and-one-half-inch clear from the sides of the cheekwall. A handrail is integrated as detailed on sheet C-600.
