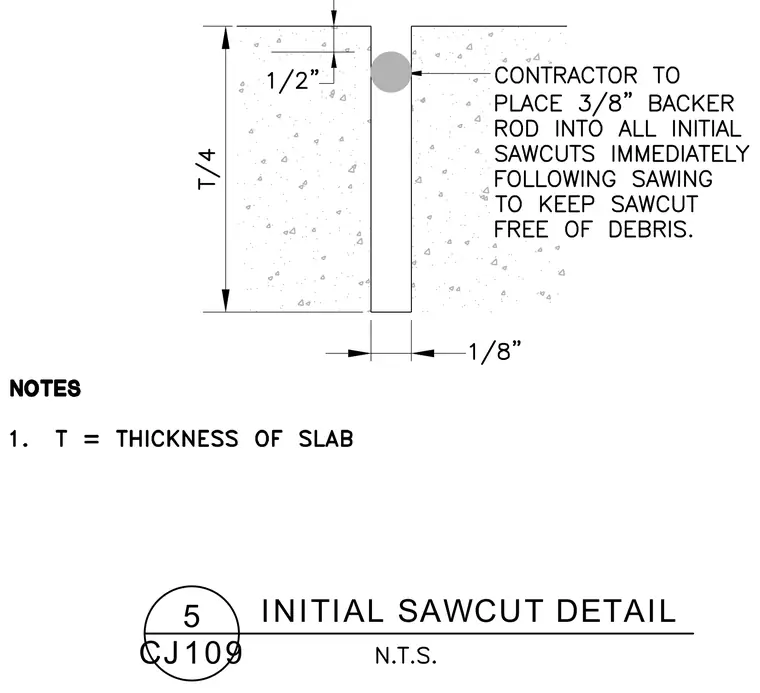

An initial sawcut of one-eighth inch width is made to a depth of one-quarter of the slab thickness. A three-eighths-inch backer rod is placed into the sawcut at a depth of one-half inch below the finished concrete surface immediately following sawing to keep the joint free of debris.
