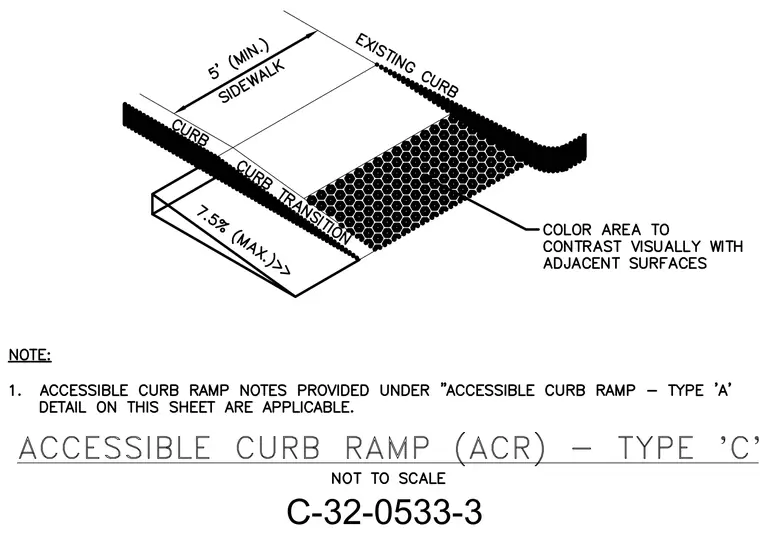

An accessible curb ramp type C features a maximum slope of seven and a half percent leading down to an existing curb. A five foot minimum sidewalk abuts the top of the ramp. A textured colored area provides visual contrast with adjacent surfaces across the curb transition zone.
