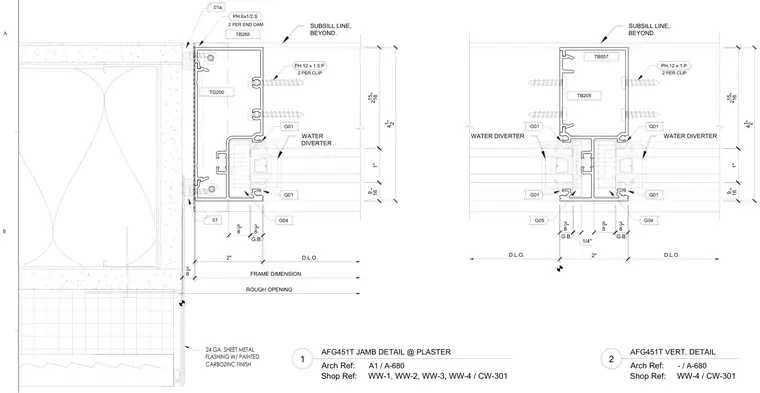

The assembly features aluminum framing members secured with two pan head screws per clip, integrating water diverters and gaskets. A twenty-four gauge sheet metal flashing with a painted Carbozinc finish transitions to the plaster finish at the rough opening. Daylight openings and frame dimensions are coordinated with subsill lines beyond.
WATER DIVERTER WATER DIVERTER TB557 TB205 4 1 2 " 1" 2 15 16 " 2" D.L.O. D.L.O. 3 8" G.B. 3 8" G.B. 5 8" 1/4" 2 PER CLIP PH.12 x 1.P SUBSILL LINE, BEYOND. Arch Ref: 2 AFG451T VERT. DETAIL - / A-680 9 16 " Shop Ref: WW-4 / CW-301 TB265 TG200 3 8" FRAME DIMENSION ROUGH OPENING 01 01a PH.6x1/2.S 2 PER END DAM 2 PER CLIP PH.12 x 1.5.P SUBSILL LINE, BEYOND. 2" D.L.O. 3 8" G.B. 5 8" 4 1 2 " 1" 2 15 16 " 9 16 " Arch Ref: 1 AFG451T JAMB DETAIL @ PLASTER A1 / A-680 Shop Ref: WW-1, WW-2, WW-3, WW-4 / CW-301 G01 G01 G01 G01 G01 G01 G04 G05 G04 WATER DIVERTER 24 GA. SHEET METAL FLASHING W/ PAINTED CARBOZINC FINISH B A
