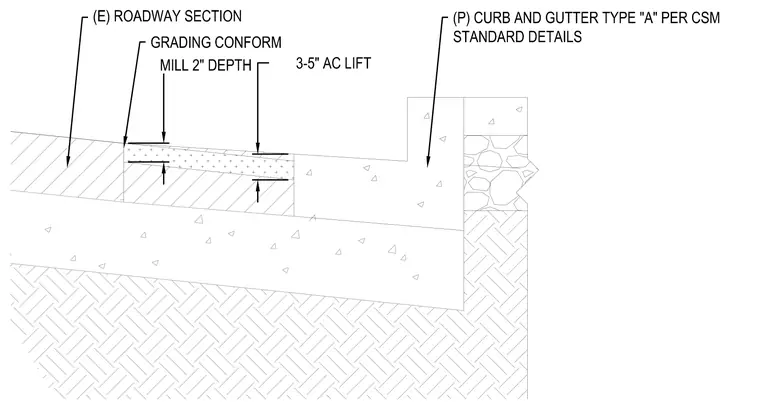

A roadway section interface features an existing roadway with a three to five inch asphalt concrete lift and a two inch depth mill for grading conformance. A proposed type A curb and gutter per CSM standard details abuts the milled asphalt section over a compacted subgrade. The transition manages the connection between existing pavement and new site paving.
(E) ROADWAY SECTION r GRADING CONFORM / MILL 2" DEPTH r (P) CURB AND GUTTER TYPE "A" PER CSM STANDARD DETAILS 3-5" AC LIFT <7 Ai A < <7 41 c> A A <7
