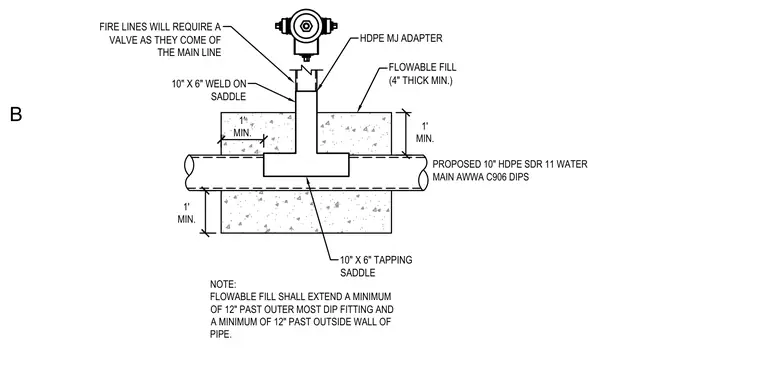

A fire hydrant connects to a proposed ten-inch high-density polyethylene standard dimension ratio eleven water main conforming to American Water Works Association C906 ductile iron pipe size standards. The branch line utilizes a ten-by-six-inch weld-on saddle or tapping saddle attached to the main line, transitioning up to a high-density polyethylene mechanical joint adapter beneath the hydrant. A valve is required on the fire line as it branches off from the main line. The pipe connection zone is encased in a flowable fill bed four inches thick minimum, extending a minimum of twelve inches past the outermost ductile iron pipe fitting and a minimum of twelve inches past the outside wall of the pipe.
1' MIN. 1' MIN. 1' MIN. 10" X 6" TAPPING SADDLE FLOWABLE FILL (4" THICK MIN.) 10" X 6" WELD ON SADDLE HDPE MJ ADAPTER PROPOSED 10" HDPE SDR 11 WATER MAIN AWWA C906 DIPS NOTE: FLOWABLE FILL SHALL EXTEND A MINIMUM OF 12" PAST OUTER MOST DIP FITTING AND A MINIMUM OF 12" PAST OUTSIDE WALL OF PIPE. FIRE LINES WILL REQUIRE A VALVE AS THEY COME OF THE MAIN LINE B
