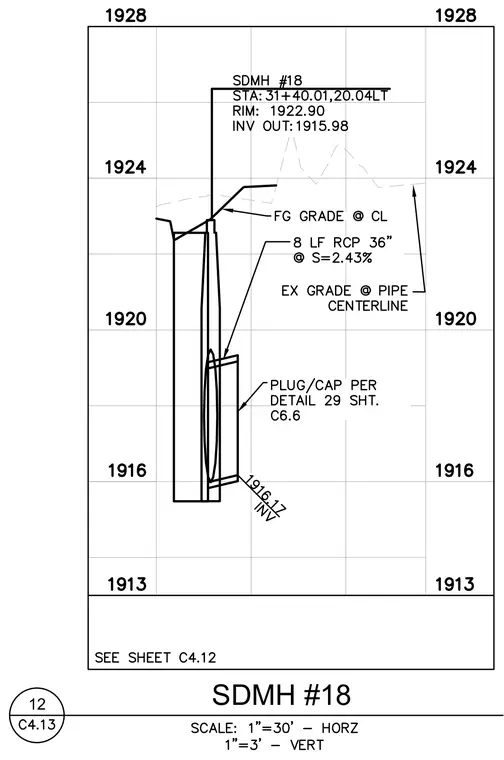

Storm drainage manhole number 18 is located at station 31 plus 40.01 and 20.04 left with a rim elevation of 1922.90 and an out invert elevation of 1915.98. The structure connects to eight linear feet of thirty-six-inch reinforced concrete pipe at a slope of 2.43 percent. An existing grade line runs along the pipe centerline while finished grade is established at the manhole centerline. A plug or cap is installed per detail 29 on sheet C6.6.
