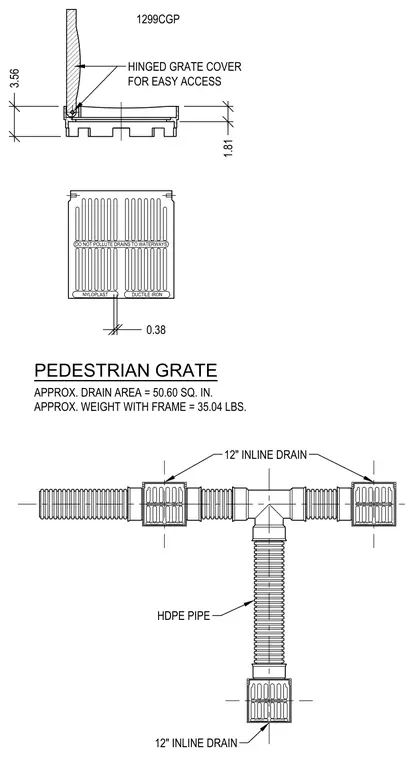

A twelve-inch high-density polyethylene inline drain connects to corrugated HDPE pipe runs with a ductile iron pedestrian grate. The assembly features a hinged grate cover model 1299CGP providing easy access, with an approximate drain area of 50.60 square inches and a total approximate weight with frame of 35.04 pounds. The grate includes cast warning text reading 'DO NOT POLLUTE DRAINS TO WATERWAYS' alongside Nyloplast and ductile iron markings. The plan layout displays a multi-basin connection network utilizing inline drains and pipe segments.
APPROX. DRAIN AREA = 50.60 SQ. IN. APPROX. WEIGHT WITH FRAME = 35.04 LBS. PEDESTRIAN GRATE 1299CGP DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST 0.38 3.56 1.81 HINGED GRATE COVER FOR EASY ACCESS DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST DUCTILE IRON DO NOT POLLUTE DRAINS TO WATERWAYS NYLOPLAST 12" INLINE DRAIN 12" INLINE DRAIN HDPE PIPE
