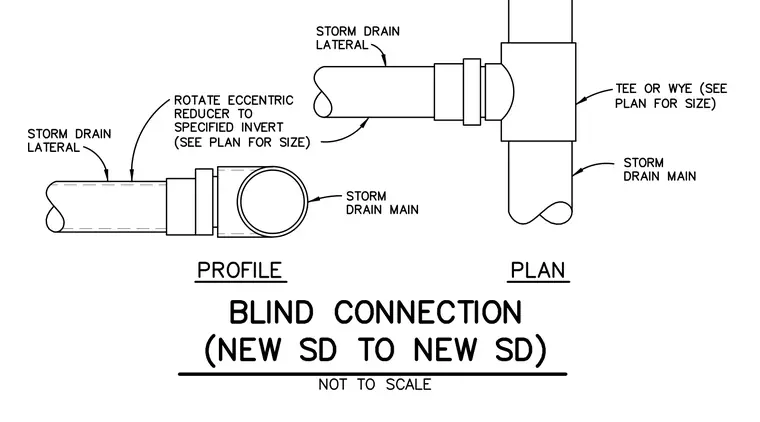

A storm drain lateral connects to a storm drain main using an eccentric reducer rotated to the specified invert per plan and a tee or wye fitting sized per plan. The profile and plan views illustrate the plumbing layout for tying a new storm drain lateral into a new storm drain main.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
