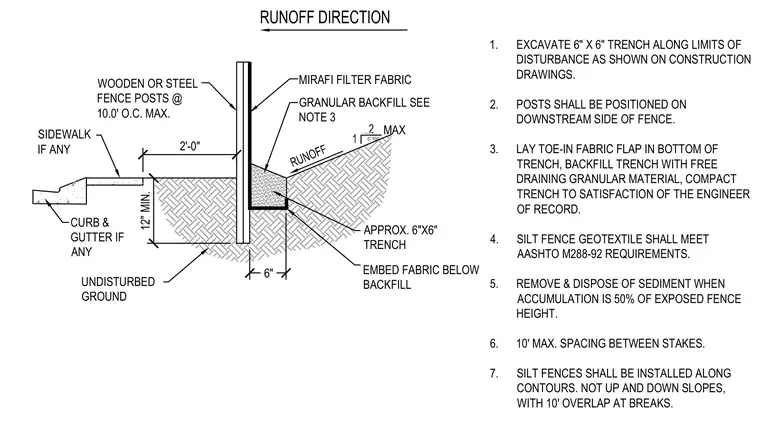

A temporary silt fence assembly is constructed along the limits of disturbance with wooden or steel fence posts spaced at a maximum of ten feet on center positioned on the downstream side of the fence. Mirafi filter fabric is installed against the upstream side of the posts with the toe-in fabric flap laid in the bottom of an approximate six-inch by six-inch trench. The trench is backfilled with free draining granular material and compacted. Optional sidewalk and curb and gutter elements are shown at a minimum offset of two feet.
RUNOFF MIRAFI FILTER FABRIC GRANULAR BACKFILL SEE NOTE 3 12" MIN. CURB & GUTTER IF ANY 6" SIDEWALK IF ANY 2'-0" WOODEN OR STEEL FENCE POSTS @ 10.0' O.C. MAX. 1. EXCAVATE 6" X 6" TRENCH ALONG LIMITS OF DISTURBANCE AS SHOWN ON CONSTRUCTION DRAWINGS. 2. POSTS SHALL BE POSITIONED ON DOWNSTREAM SIDE OF FENCE. 3. LAY TOE-IN FABRIC FLAP IN BOTTOM OF TRENCH, BACKFILL TRENCH WITH FREE DRAINING GRANULAR MATERIAL, COMPACT TRENCH TO SATISFACTION OF THE ENGINEER OF RECORD. 4. SILT FENCE GEOTEXTILE SHALL MEET AASHTO M288-92 REQUIREMENTS. 5. REMOVE & DISPOSE OF SEDIMENT WHEN ACCUMULATION IS 50% OF EXPOSED FENCE HEIGHT. 6. 10' MAX. SPACING BETWEEN STAKES. 7. SILT FENCES SHALL BE INSTALLED ALONG CONTOURS. NOT UP AND DOWN SLOPES, WITH 10' OVERLAP AT BREAKS. APPROX. 6"X6" TRENCH 1 2 EMBED FABRIC BELOW BACKFILL MAX RUNOFF DIRECTION UNDISTURBED GROUND C 100 SITE PLAN
