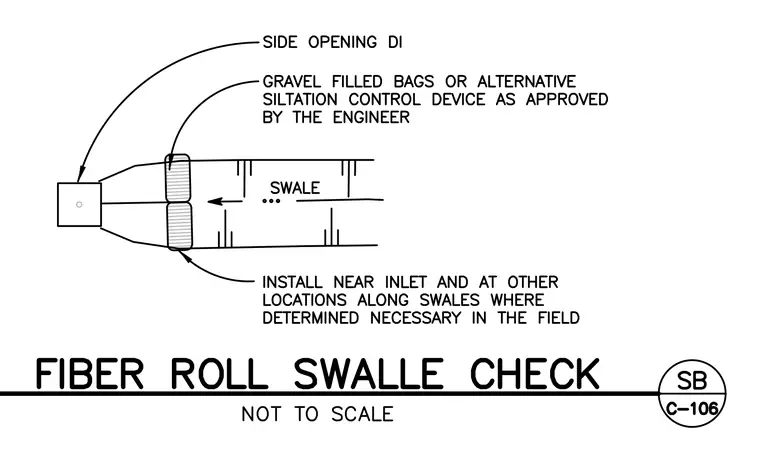

A fiber roll swale check is installed near a side opening drop inlet with gravel-filled bags or an alternative siltation control device approved by the engineer. The installation is positioned near inlets and at other locations along swales where determined necessary in the field.
