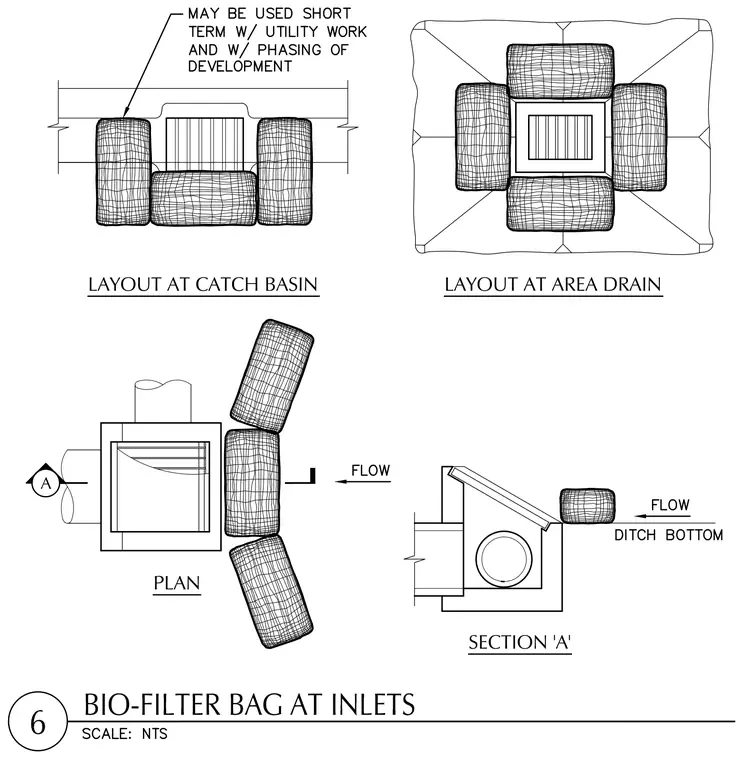

Bio-filter bags are placed around catch basins and area drains to provide temporary sediment control during utility work and phased construction. The plan and section views show the positioning of the filter bags relative to the drainage inlet and ditch bottom, with a note indicating short-term use during utility work and development phasing.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
