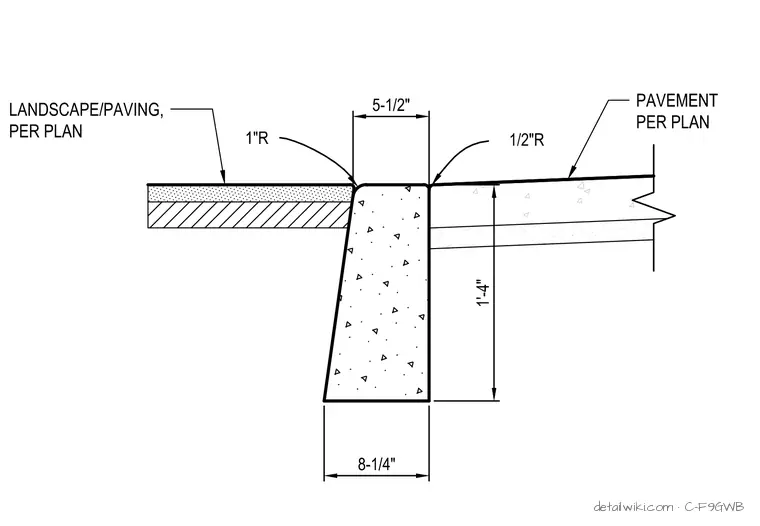

This flush concrete curb features a 5-1/2 inch top width and a 1 foot 4 inch total depth, with a tapered profile narrowing to 8-1/4 inches at the base. The curb top is finished with a 1 inch radius on the landscape side and a 1/2 inch radius on the pavement side. The adjacent landscape or paving and the pavement surface are both specified per plan. The curb is cast-in-place to provide a flush transition between the two distinct surface materials.
