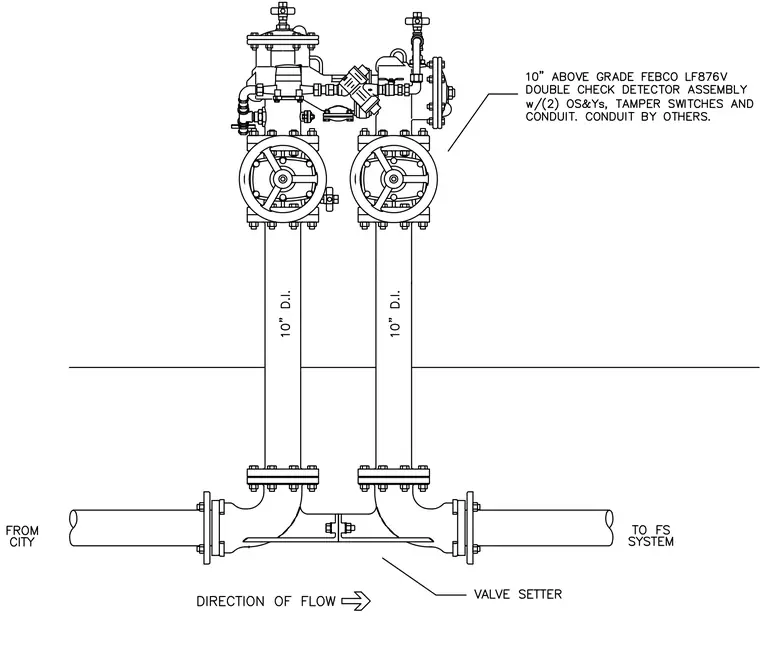

An above-grade ten-inch Febco LF876V double check detector assembly connects to ten-inch ductile iron supply and fire service piping. The assembly includes two outside screw and yoke valves, tamper switches, and conduit installed by others. Underground piping transitions upward through flanged elbows and vertical runs connected to a valve setter with a indicated direction of flow.
