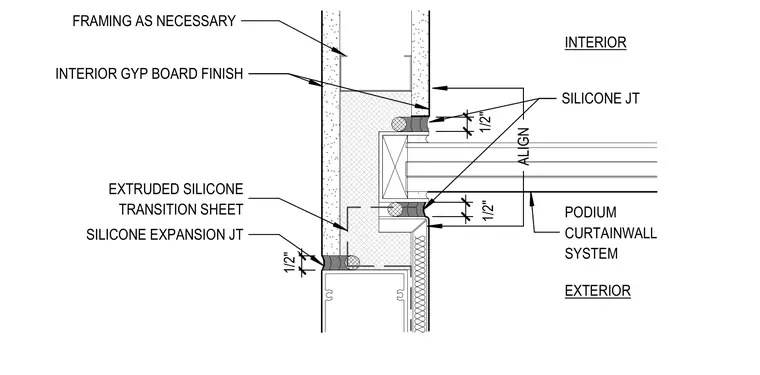

An extruded silicone transition sheet ties the podium curtain wall system to the interior gypsum board finish over framing as necessary. Half-inch silicone expansion joints with backer rod seal the junction between the exterior curtain wall assembly and the interior construction. The interior finish aligns with the exterior framing plane.
ALIGN EXTRUDED SILICONE TRANSITION SHEET INTERIOR GYP BOARD FINISH FRAMING AS NECESSARY 1 / 2 " SILICONE EXPANSION JT 1 / 2 " 1 / 2 " PODIUM CURTAINWALL SYSTEM INTERIOR EXTERIOR SILICONE JT
