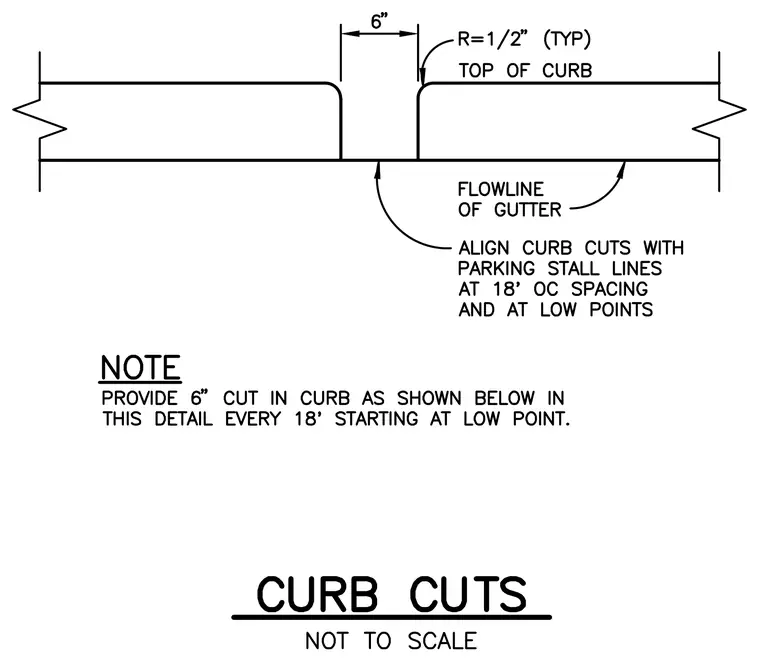

A six-inch curb cut features a one-half-inch typical radius at the top corners, measured at the top of the curb above the flowline of the gutter. The curb cuts must align with parking stall lines at eighteen feet on center spacing and at low points. The note specifies providing a six-inch cut in the curb every eighteen feet starting at the low point.
