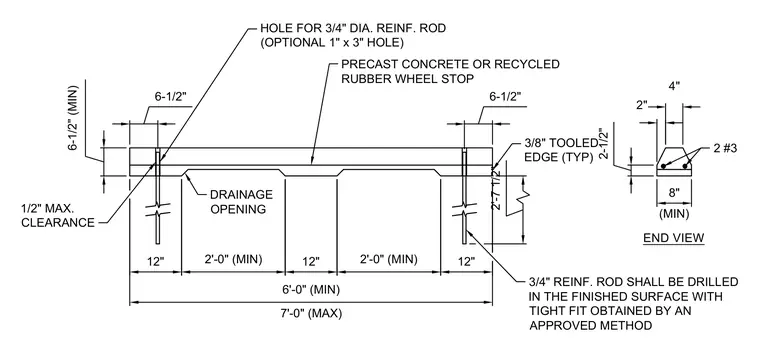

A precast concrete or recycled rubber wheel stop features bottom drainage openings and is secured to the finished surface by three-quarter-inch diameter reinforcing rods installed with a tight fit. The wheel stop incorporates two number three reinforcing rods longitudinally and has an eight-inch minimum base width tapering to four inches at the top with a two-and-a-half-inch overall height. Vertical holes accommodate the three-quarter-inch anchor rods with a half-inch maximum clearance, supplemented by optional one-by-three-inch holes and typical three-eighths-inch tooled edges. The overall length ranges from six feet minimum to seven feet maximum, with anchor rod spacings and edge distances fully dimensioned.
END VIEW HOLE FOR 3/4" DIA. REINF. ROD (OPTIONAL 1" x 3" HOLE) (MIN) 7'-0" (MAX) DRAINAGE OPENING 2 #3 3/4" REINF. ROD SHALL BE DRILLED IN THE FINISHED SURFACE WITH TIGHT FIT OBTAINED BY AN APPROVED METHOD 1/2" MAX. CLEARANCE 3/8" TOOLED EDGE (TYP) PRECAST CONCRETE OR RECYCLED RUBBER WHEEL STOP 2'-0" (MIN) 6'-0" (MIN) 6-1/2" 2'-7 1/2" 12" 2'-0" (MIN) 12" 12" 6-1/2" (MIN) 6-1/2" 8" 2-1/2" 4" 2"
