The swing gate assembly features a gate frame anchored by a drop rod assembly, standard hinges, and a latch assembly mounted at a new gate post foundation and new flush curb. A washer secures the gate frame connection with a maximum clearance of fifty units. The gate post is anchored directly into the concrete foundation adjacent to the flush concrete curb.

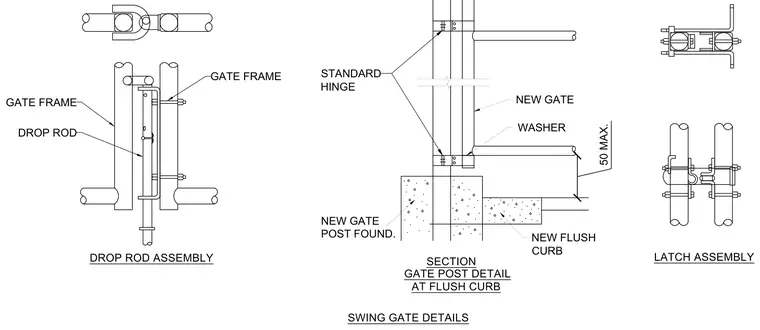

LATCH ASSEMBLY SWING GATE DETAILS SECTION GATE POST DETAIL AT FLUSH CURB NEW FLUSH CURB NEW GATE WASHER NEW GATE POST FOUND. STANDARD HINGE DROP ROD ASSEMBLY GATE FRAME DROP ROD GATE FRAME 50 MAX.
