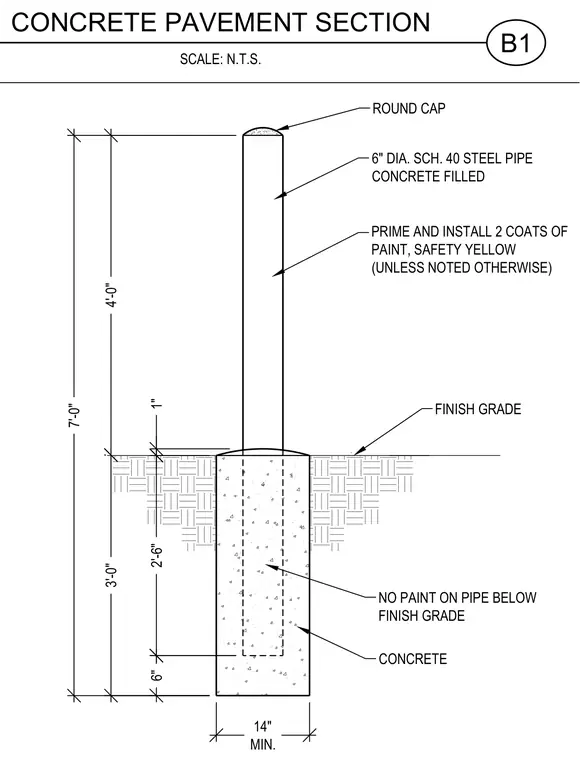

A six-inch diameter Schedule 40 steel pipe is filled with concrete and topped with a rounded cap. The bollard extends four feet above finish grade and embeds two feet six inches into a fourteen-inch minimum diameter concrete foundation, reaching a total depth of three feet. The exposed steel is primed and finished with two coats of safety yellow paint, with no paint applied below the finish grade.
SCALE: N.T.S. CONCRETE PAVEMENT SECTION B1 7'-0" 4'-0" 3'-0" 1" 2'-6" 6" 14" MIN. ROUND CAP 6" DIA. SCH. 40 STEEL PIPE CONCRETE FILLED PRIME AND INSTALL 2 COATS OF PAINT, SAFETY YELLOW (UNLESS NOTED OTHERWISE) FINISH GRADE NO PAINT ON PIPE BELOW FINISH GRADE CONCRETE
