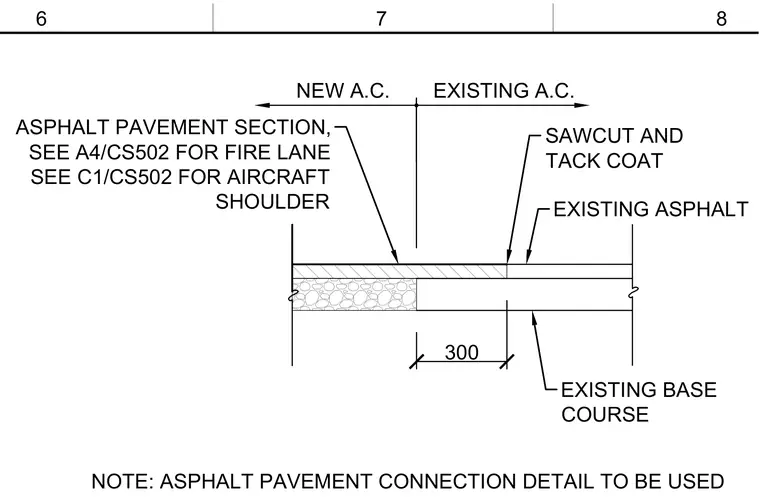

Transition and connection between new asphalt concrete and existing asphalt concrete pavement. The existing asphalt edge is prepared with a sawcut and tack coat prior to placement of the new asphalt surface. An underlying base course supports the asphalt layers across the connection joint.
EXISTING A.C. NEW A.C. ASPHALT PAVEMENT SECTION, SEE A4/CS502 FOR FIRE LANE SEE C1/CS502 FOR AIRCRAFT SHOULDER SAWCUT AND TACK COAT EXISTING ASPHALT EXISTING BASE COURSE NOTE: ASPHALT PAVEMENT CONNECTION DETAIL TO BE USED 300 6 7 8
