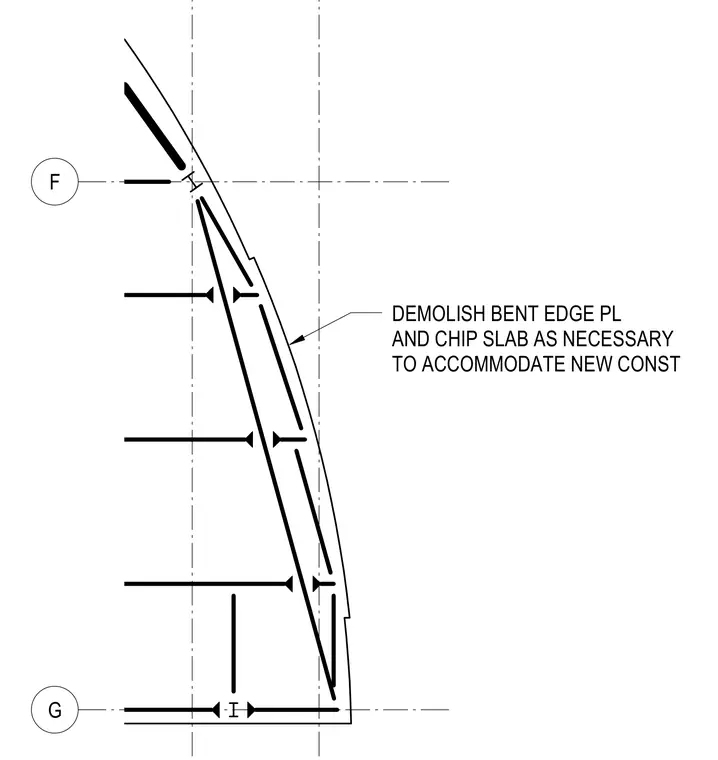

The existing bent edge plate is removed along the slab edge and the concrete slab is chipped as necessary to accommodate new construction. Grid lines F and G establish the structural reference coordinates for the demolition area.
