A four-inch concrete pavement is supported by a four-inch sand bed compacted to ninety-five percent maximum density over a twenty-four-inch layer of approved non-expansive engineered fill per the soils report. The subgrade consists of twelve inches of scarified and compacted material meeting a minimum of ninety-five percent maximum density. A thickened edge is provided where the pavement is not bounded by hardscape, measuring eight inches wide by six inches deep. Reinforcement consists of number three reinforcing bars spaced at twenty-four inches on center each way, positioned one and one-half inches clear from the top surface. The actual thickness of the concrete and aggregate base is determined during construction by the geotechnical engineer.

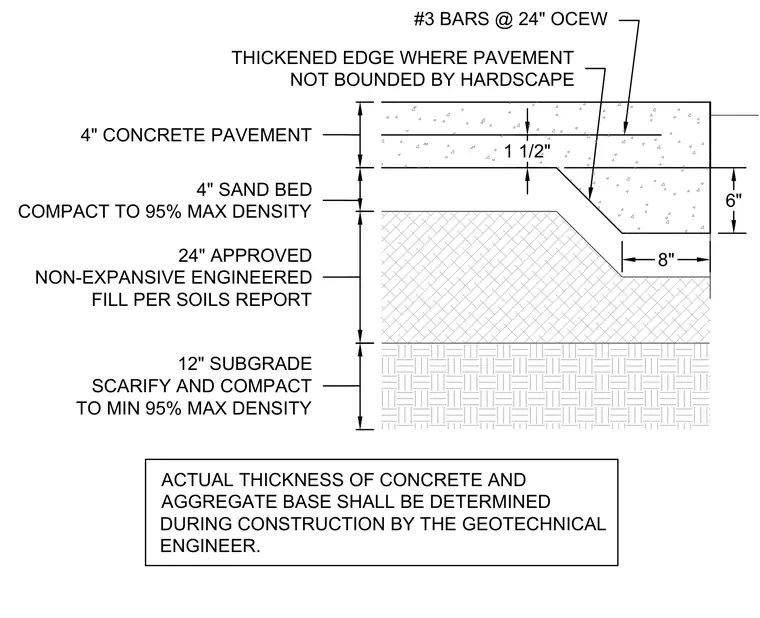

ACTUAL THICKNESS OF CONCRETE AND AGGREGATE BASE SHALL BE DETERMINED DURING CONSTRUCTION BY THE GEOTECHNICAL ENGINEER. 4" CONCRETE PAVEMENT 4" SAND BED COMPACT TO 95% MAX DENSITY 24" APPROVED NON-EXPANSIVE ENGINEERED FILL PER SOILS REPORT 6" 8" THICKENED EDGE WHERE PAVEMENT NOT BOUNDED BY HARDSCAPE 1 1/2" #3 BARS @ 24" OCEW 12" SUBGRADE SCARIFY AND COMPACT TO MIN 95% MAX DENSITY
