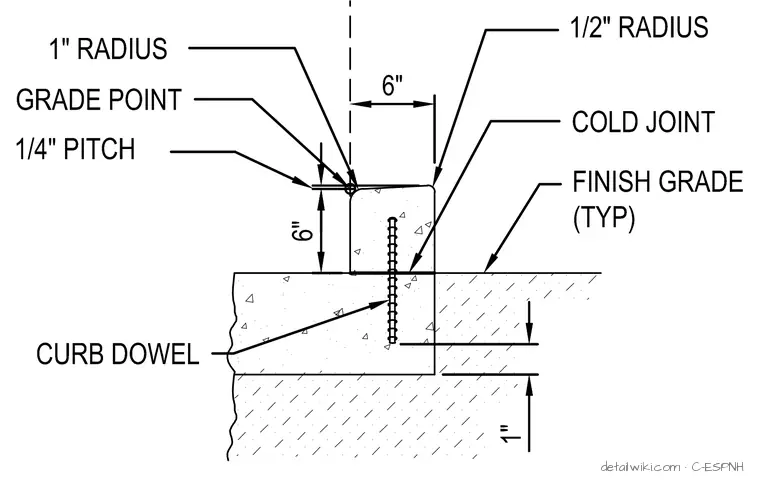

This concrete barrier curb features a six-inch height above the finish grade with a one-inch radius at the front edge and a one-half-inch radius at the back edge. The top surface is sloped at a one-quarter-inch pitch from the grade point. A vertical curb dowel provides anchorage across the cold joint between the curb and the underlying concrete slab. The assembly is set against the finish grade, with the base of the curb extending one inch below the adjacent pavement surface.
