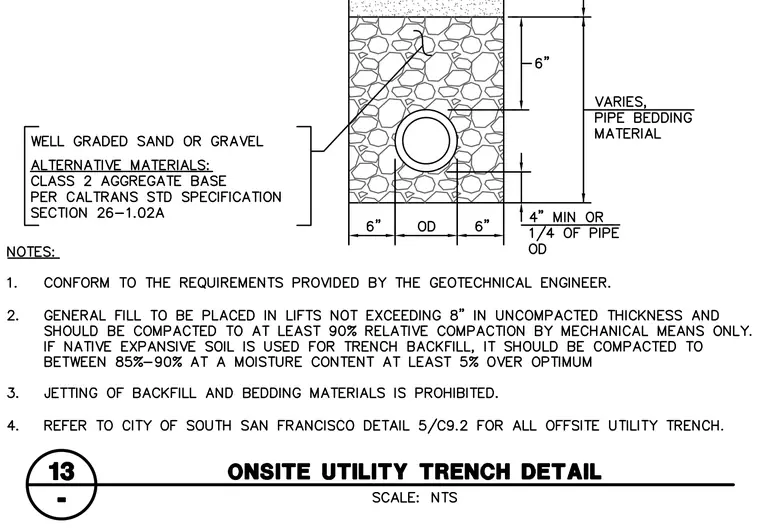

This trench detail shows underground utility pipe bedding with a minimum of four inches or one-quarter of the pipe outside diameter beneath the pipe, flanked by six-inch clearances on each side. The pipe bedding material varies and is surrounded by well graded sand or gravel, with alternative materials including Class 2 aggregate base per Caltrans standard specification section 26-1.02A. General fill must be placed in lifts not exceeding eight inches in uncompacted thickness and compacted to at least ninety percent relative compaction by mechanical means only, while jetting of backfill and bedding materials is prohibited.
