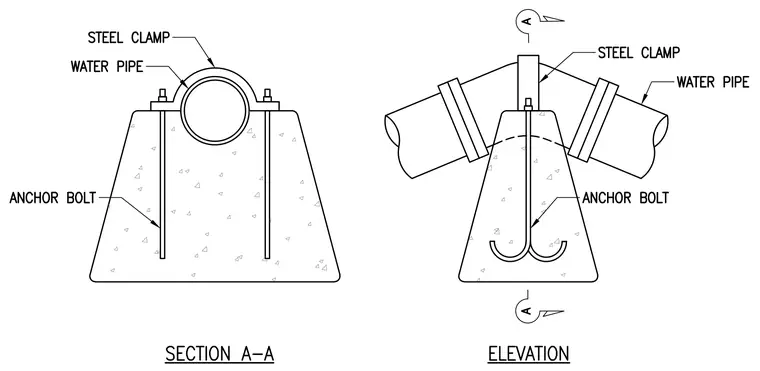

A water pipe rests atop a trapezoidal concrete support block and is secured by a curved steel clamp fastened with vertical anchor bolts embedded into the concrete. The assembly includes a corresponding elevation view showing the pipe alignment and anchor hook configuration.
