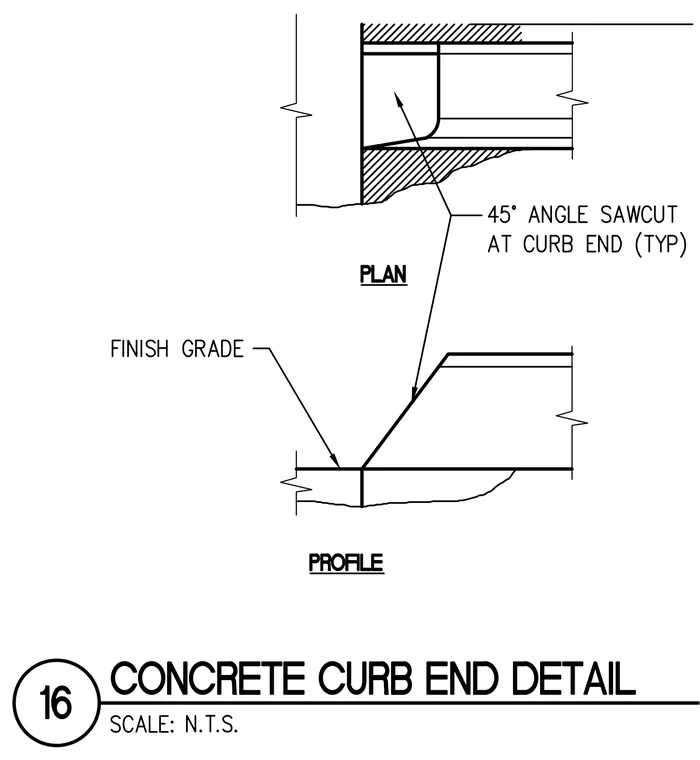

Plan and profile views of a cast-in-place concrete curb termination configuration. The curb end features a forty-five degree angle sawcut, typically applied at all exposed termination points for a clean finish and edge protection. Finish grade is indicated meeting the base of the curb assembly.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
