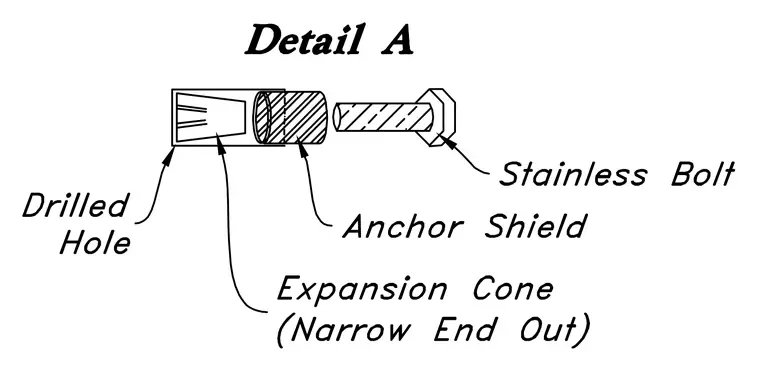

An expansion anchor assembly features a stainless steel bolt threaded into an anchor shield containing an expansion cone with the narrow end oriented outward. The entire anchor mechanism fits inside a pre-drilled hole.
