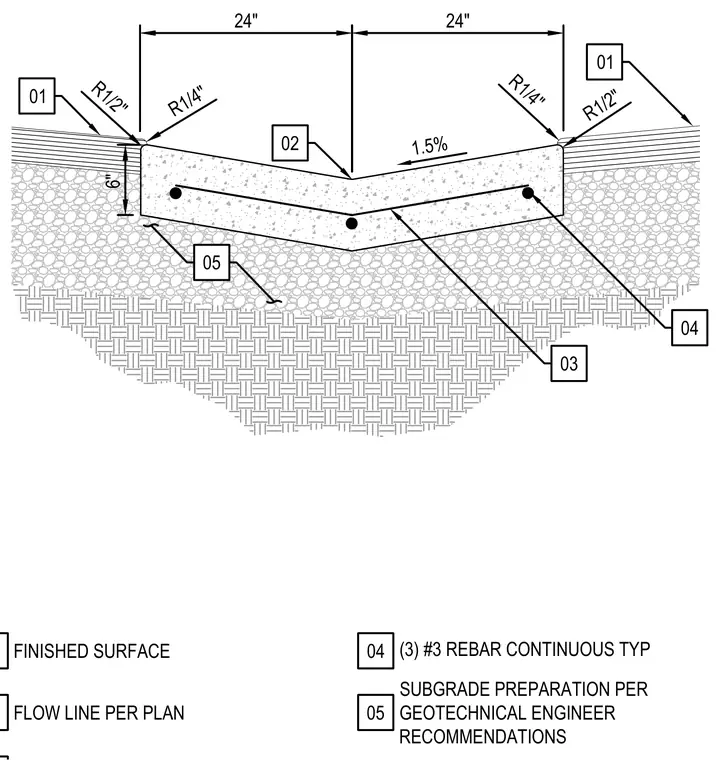

A reinforced concrete valley gutter bears on prepared subgrade. The gutter features a finished surface transitioning with quarter-inch and half-inch radii, a central flow line as sized per plan, and a one and a half percent slope toward the center. Three continuous number three reinforcing bars are tied within the concrete profile. The subgrade preparation is executed per geotechnical engineer recommendations.
24" 24" 01 01 02 04 03 05 R1/2" R1/2" R1/4" R1/4" 6" FINISHED SURFACE 01 FLOW LINE PER PLAN (3) #3 REBAR CONTINUOUS TYP 04 SUBGRADE PREPARATION PER GEOTECHNICAL ENGINEER RECOMMENDATIONS 05 1.5%
