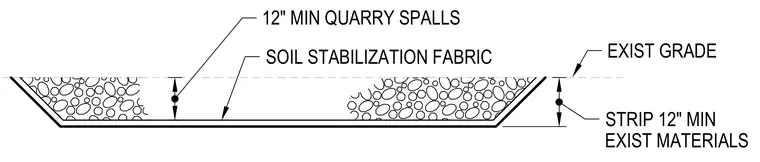

Existing materials are stripped a minimum of twelve inches below existing grade to prepare the subgrade. A soil stabilization fabric lines the excavated trench and extends up the sloped sides. A minimum twelve-inch layer of quarry spalls is placed directly over the fabric.
12" MIN QUARRY SPALLS STRIP 12" MIN EXIST MATERIALS EXIST GRADE SOIL STABILIZATION FABRIC
