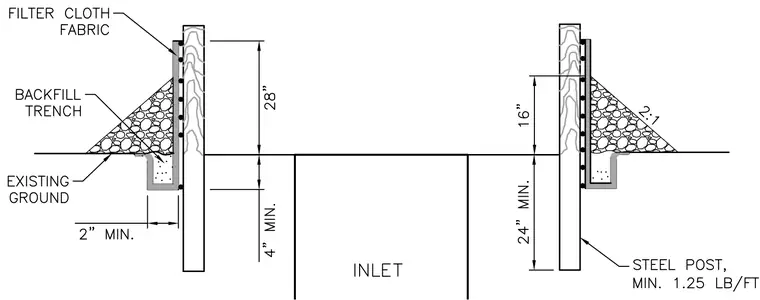

Storm drain inlet protection assembly featuring filter cloth fabric secured along steel posts with a minimum weight of 1.25 pounds per foot. The steel posts are embedded a minimum of 24 inches below existing grade, with a 4 inch minimum clearance above the inlet structure. A backfill trench is sloped at a 2:1 ratio against the fabric, maintaining a minimum 2 inch offset from the post base.
