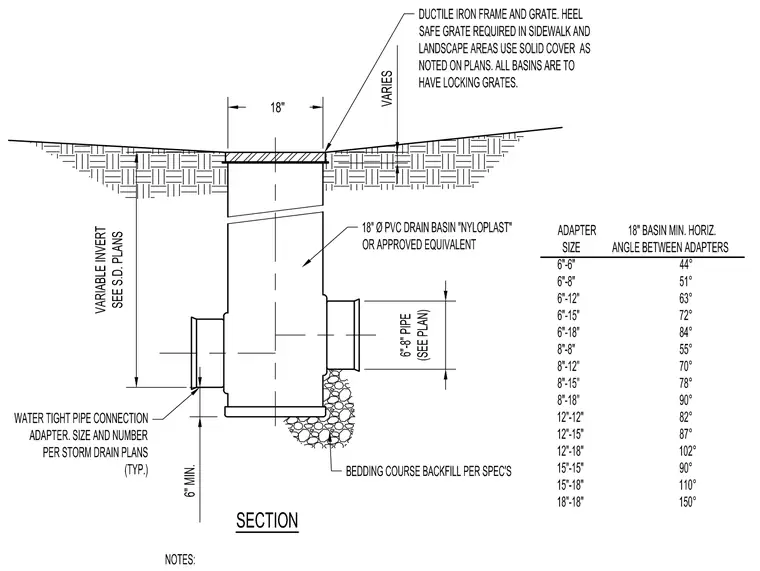

An eighteen-inch polyvinyl chloride drain basin, such as a Nyloplast unit or approved equivalent, is installed with a ductile iron frame and heel-safe grate flush with the finished sidewalk or landscape surface. A solid cover is used where noted on the plans, and all basins feature locking grates. Water-tight pipe connection adapters link six to eight-inch pipes to the basin at variable inverts determined per storm drain plans. The assembly rests on a six-inch minimum bedding course with backfill placed per specifications. A companion angle table specifies minimum horizontal angles between adapters ranging from forty-four to one hundred fifty degrees depending on adapter sizes.
18" VARIABLE INVERT SEE S.D. PLANS 6"-8" PIPE (SEE PLAN) DUCTILE IRON FRAME AND GRATE. HEEL SAFE GRATE REQUIRED IN SIDEWALK AND LANDSCAPE AREAS USE SOLID COVER AS NOTED ON PLANS. ALL BASINS ARE TO HAVE LOCKING GRATES. VARIES WATER TIGHT PIPE CONNECTION ADAPTER. SIZE AND NUMBER PER STORM DRAIN PLANS (TYP.) 6" MIN. 18" Ø PVC DRAIN BASIN "NYLOPLAST" OR APPROVED EQUIVALENT BEDDING COURSE BACKFILL PER SPEC'S ADAPTER 18" BASIN MIN. HORIZ. SIZE ANGLE BETWEEN ADAPTERS 6"-6" 44° 6"-8" 51° 6"-12" 63° 6"-15" 72° 6"-18" 84° 8"-8" 55° 8"-12" 70° 8"-15" 78° 8"-18" 90° 12"-12" 82° 12"-15" 87° 12"-18" 102° 15"-15" 90° 15"-18" 110° 18"-18" 150° NOTES: SECTION
