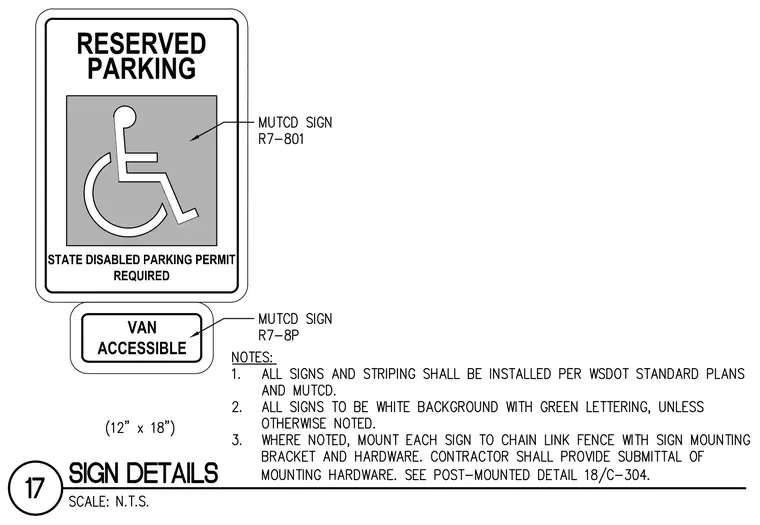

MUTCD R7-801 reserved parking sign with the state disabled parking permit required text and the accompanying R7-8P van accessible plaque. The layout specifies a white background with green lettering unless otherwise noted, with sign dimensions indicated as 12 inches by 18 inches. All signs and striping must be installed in accordance with WSDOT standard plans and MUTCD guidelines. Signs mounted to chain link fences require approved sign mounting brackets and hardware with contractor submittals.
