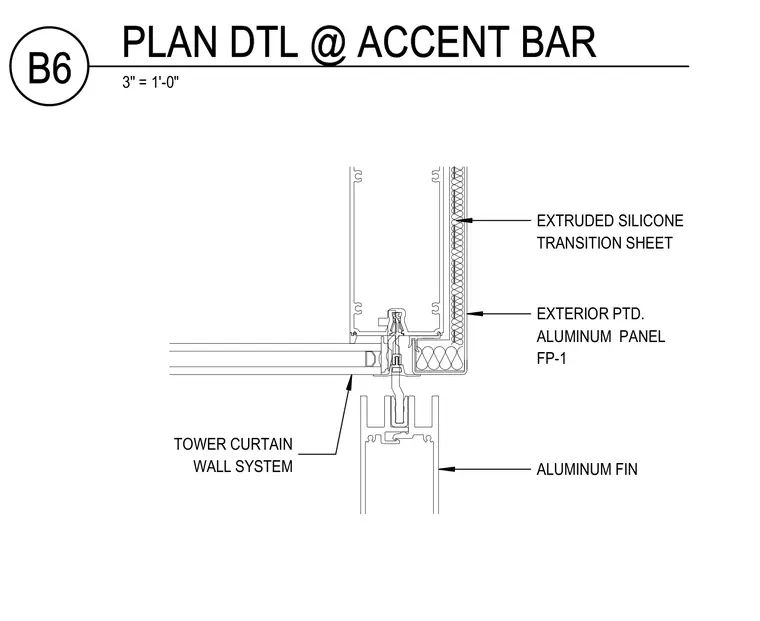

An extruded aluminum curtain wall system intersects an exterior painted aluminum panel designated as FP-1. An extruded silicone transition sheet seals the joint behind the panel assembly. An aluminum accent fin projects outward from the mullion profile.
ALUMINUM FIN EXTERIOR PTD. ALUMINUM PANEL FP-1 TOWER CURTAIN WALL SYSTEM EXTRUDED SILICONE TRANSITION SHEET 3" = 1'-0" B6 PLAN DTL @ ACCENT BAR
