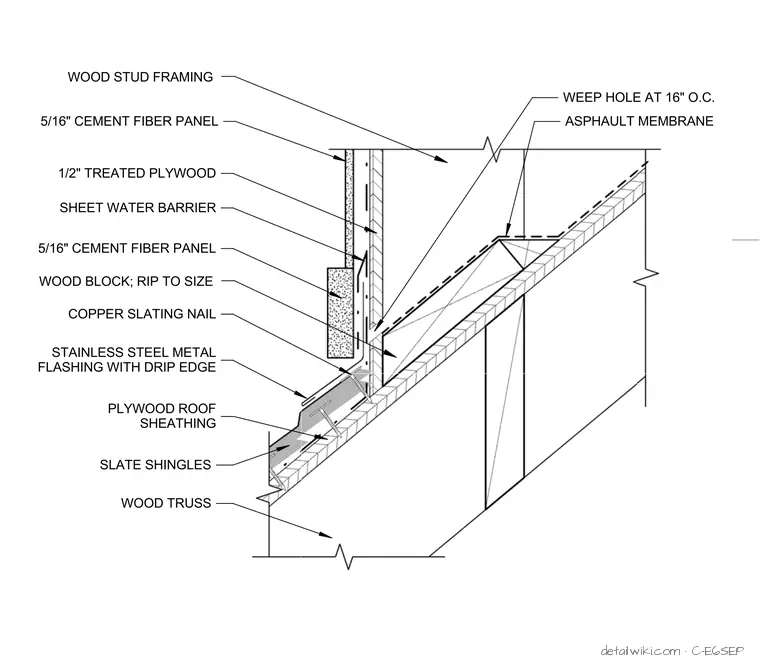

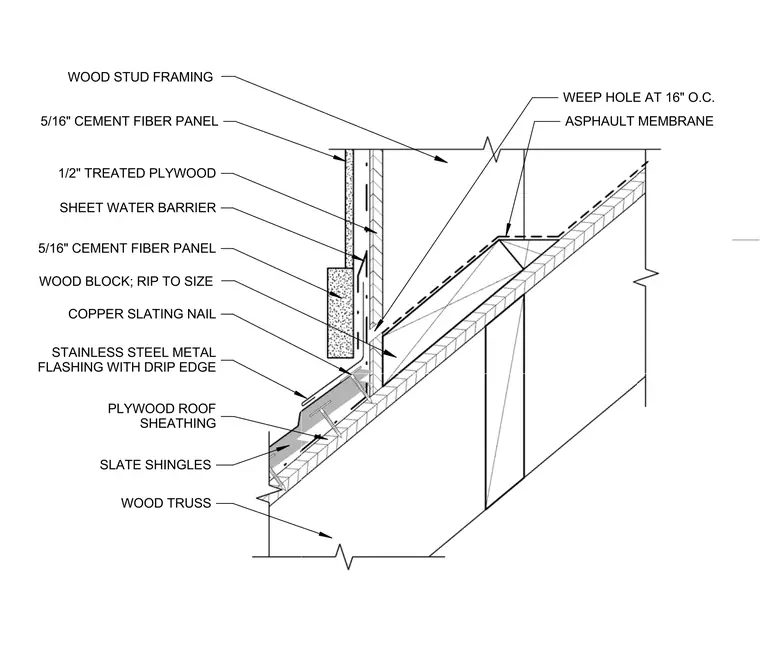

The assembly details a wood stud framing wall sheathed with treated plywood and finished with cement fiber panels meeting a pitched roof constructed with wood trusses, plywood roof sheathing, and slate shingles. Key components include a sheet water barrier behind the cladding, asphalt membrane waterproofing, and a stainless steel metal flashing with a drip edge secured by copper slating nails to protect the roof-wall transition. A wood blocking element and weep holes at 16 inches on center are incorporated for drainage and ventilation.
Text on the drawing
5/16" CEMENT FIBER PANEL COPPER SLATING NAIL SLATE SHINGLES WOOD BLOCK; RIP TO SIZE STAINLESS STEEL METAL FLASHING WITH DRIP EDGE 1/2" TREATED PLYWOOD PLYWOOD ROOF SHEATHING SHEET WATER BARRIER 5/16" CEMENT FIBER PANEL WOOD TRUSS WOOD STUD FRAMING WEEP HOLE AT 16" O.C. ASPHAULT MEMBRANE
