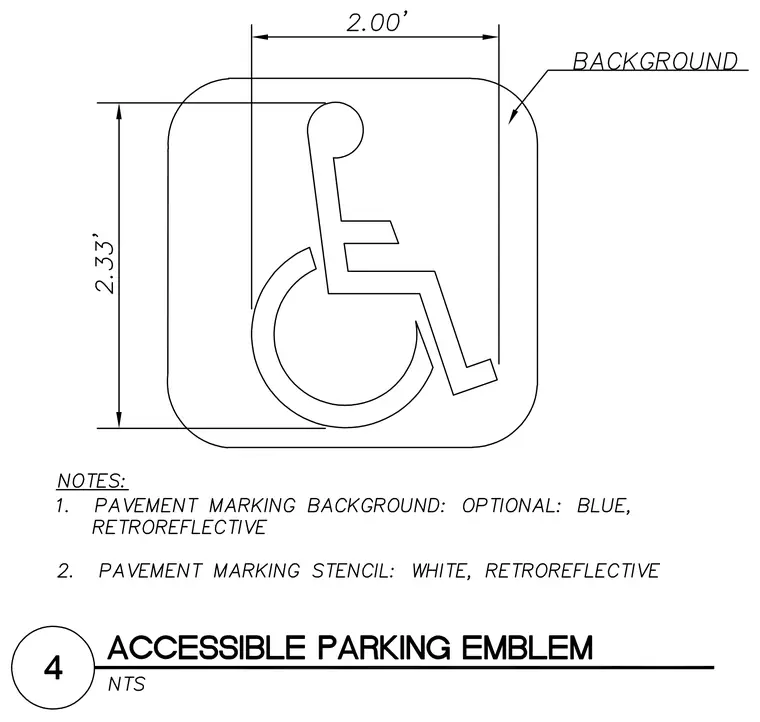

An accessible parking stall pavement marking emblem features layout dimensions and color specifications. The symbol measures two feet wide by two point three three feet high within a rounded square boundary. Notes specify an optional blue retroreflective pavement marking background and a white retroreflective pavement marking stencil.
