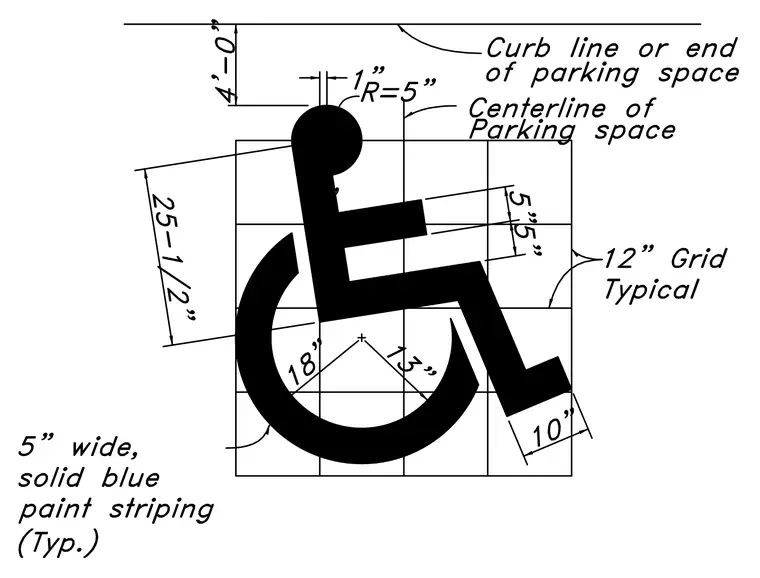

Standardized layout and dimensioning for an accessible parking space pavement marking symbol. The symbol is laid out over a twelve-inch typical grid with the head of the figure positioned four feet from the curb line or end of the parking space. Key geometric dimensions include a five-inch radius for the head, an eighteen-inch radius for the lower body arc, a twenty-five and one-half inch diagonal span, and various proportional widths and clearances. The marking is specified as five inches wide utilizing solid blue paint striping typical.
