Silt Fence

Materials

Elements

About this detail

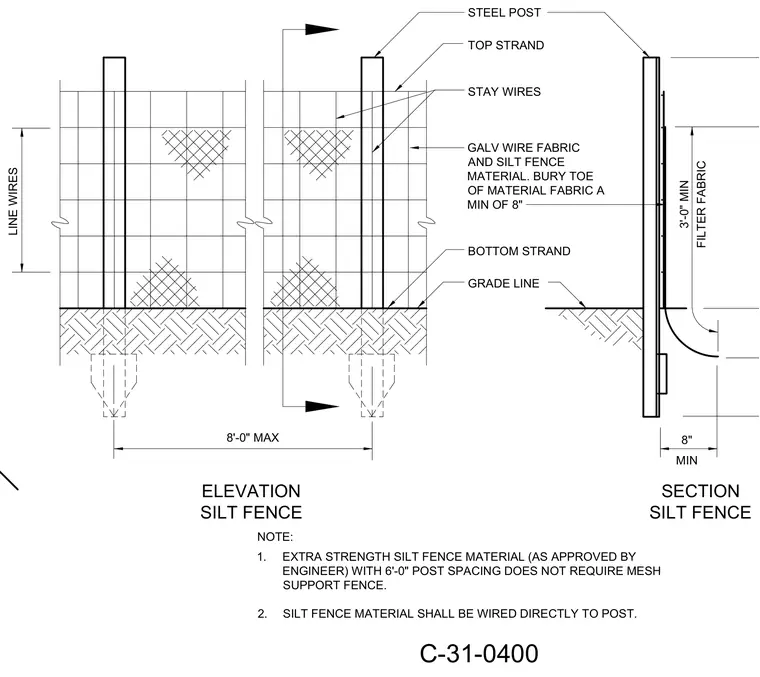

Steel posts support a galvanized wire fabric and silt fence material with a maximum post spacing of eight feet. The filter fabric extends to a minimum height of three feet above the grade line, with the toe of the material buried a minimum of eight inches underground. Top strand, bottom strand, stay wires, and line wires complete the wire fabric assembly. Extra strength silt fence material with six-foot post spacing does not require a mesh support fence, and the silt fence material is wired directly to the post.
